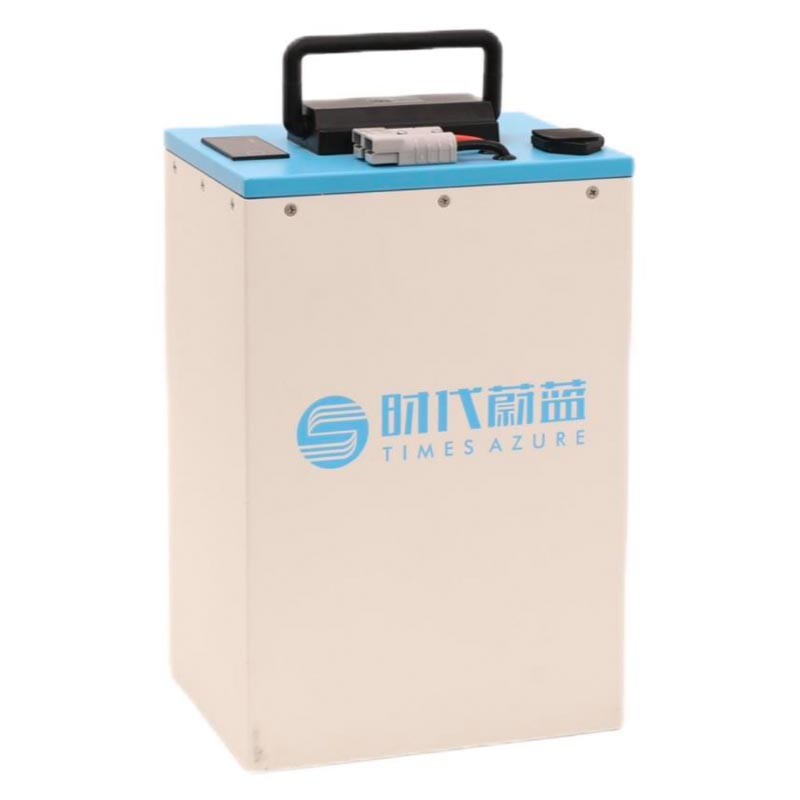

Specifications of two-wheel battery swap
Cell model: ternary 55/60/66Ah
Module specification: NCM 17S-60V
Module energy: 3.3/3.6/4KWh
Voltage range: 51~71.2V
Maximum charging current: 25A
Specifications of two-wheel battery swap
Cell model: ternary 55/60/66Ah
Module specification: NCM 17S-60V
Module energy: 3.3/3.6/4KWh
Voltage range: 51~71.2V
Maximum charging current: 25A
Maximum discharge current: 60A
Standard charge/discharge current: 20A
Operating temperature range: -30℃~50℃
Discharge port: Pinzi/Anderson
Dimensions (W*L*H) 160*220*345mm (±5mm)
Weight: 22~25 (±2)kg
Communication method: GPS
