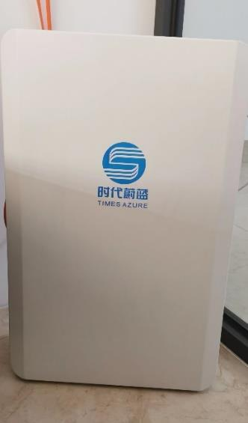

Home Energy Storage Batteries

Specifications of household energy storage batteries

Cell model LiFePO4

100/105/174/230/280Ah

Module specification LFP 16S-51.2V

Module energy 5.12/5.3/9/11.8/14.3KWh

Voltage range 44.8~58.4V

Standard charging current 50/100/140A

Standard discharge current 100A/200A (configured as required)

Cycle life 4000 times

Charge/discharge temperature range -20℃~50℃ (charging 0°C~50℃)

Environmental humidity <65%RH (no condensation)

Dimensions (W*L*H) 842*480*165mm (±5mm)

Applicable only to 5.12/5.3Kwh

Weight 53 (±2) kg

Communication method RS485/CAN
