Industrial and Commercial Energy Storage Battery Cabinet

Modules specification:

Product name: 430Kwh lithium iron phosphate commercial energy storage system

Product model: SDWL-430-768/F16-15

Product specifications: LFP280-430Kwh

Equipment name Specification Quantity

Battery system Rated capacity 430kWh battery 1

Convergence control cabinet Including circuit breaker, UPS 1

Battery management system Hardware + software 1

Thermal management system Cold and hot variable frequency air conditioner 3kW, with electric auxiliary heating 2

Fire protection system Heptafluoropropane (perfluorohexanone) 1

PCS 250kW standard energy storage inverter system 1

EMS Hardware + software 1

Monitoring & lighting system Monitoring + lighting 1

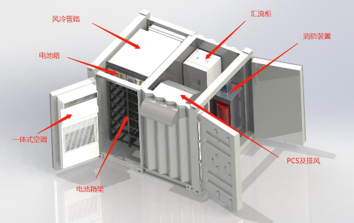

Energy storage container Customized 10-foot container high cabinet 1

Transportation & commissioning and installation 1

Battery box bracket 2

Battery cluster control high voltage box 2
